Pharmaceutical Machines » Tablet Section


About Tableting Machine India

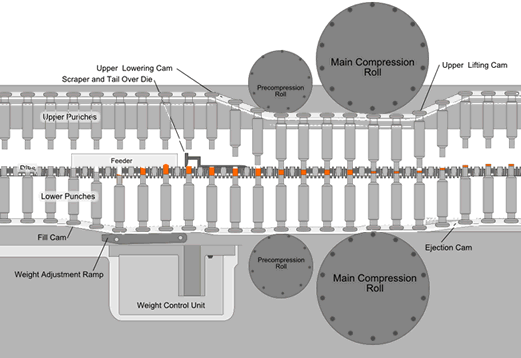

The tablets are manufactured or prepared by collective pressing action of two things – punches and die together. In the initial phase of tablet machines, bottom knock is lowered in die through which granulated feed stock be fed inside.

The depth of lower punch should be controlled precisely to check the amount of powder that fills the cavity. In case, amount of powder is overloaded then scarped materials is wiped away from top of the die and lower punch is strained down temporarily to prevent the spillage.

Now cover will be detached so that upper or greater punch can come into contact with powder. Now put compression force through compression rolls to fuse powder altogether so that it could be converted to hard tablet. At the end, lower punch will expand to eject the tablet from tablet machines.

Leading Suppliers Of Tableting Machines India

We are the leading tablet machine manufacturers and exporters based in India selling wide range of equipment that has the capability to produce tablets from 250,000 to more than 1,000,000 every hour. We do also provide customized solutions for various Pharmaceutical machines like tableting machines, Strip Packing Machine, filling machine and Blister Packing Machine based on industry needs and requirements.

The flawless range of our tableting machine India makes sure that our products are highly efficient and cost effective when compared to other similar products in market. We always employ most sophisticated tools and technologies to manufacture our products.

Why To Choose Sonus For Tablet machines India ?

Our machines are available at highly affordable prices and durable too. Besides these we do also provide tablet printing machines to print on tablets and capsules. Irrespective of sizes, we assure precise printing on all kinds of tablets and capsules.

Owing to years of experience and continuous dedication, we are always ready to give most amazing tableting machine to our clients at highly suitable prices. The selection of high grade raw materials makes our tablet machines more desirable across India and international market. Each and every product is tested on various quality parameters before it is finally delivered to our clients.

Our wide range of tablet machines India is particularly suitable for various industries and businesses worldwide. They can be availed in custom specifications as needed by clients for different industry projects.

tableting machines india

tablet press machine suppliers tableting machines india

tableting machines india tablet press machine suppliers tableting machines india

tablet press machine suppliers tableting machines india tablet press machine suppliers

tableting machines india tablet press machine suppliers tableting machines india

PRODUCTS (TABLETING PRESSES)
SINGLE ROTARY TABLETING MACHINE GMP MODEL
Characteristics and Special Features :
tablet press machine suppliers As per the cGMP guidelines
tableting machines india Auto Lubrication like an possible feature
tablet press machine suppliers Dust Nozzle together with clamp
tableting machines india Higher steeple speed equal to 42 RPM
tablet press machine suppliers Pre-compression arrangements like a possible feature
tableting machines india Interlocking at the Upper guards
tablet press machine suppliers Key compression pressure equal to 10 tons
tableting machines india Maximum output equal to 57,960 tab / hr
tablet press machine suppliers Overload pressure releasing arrangement
tableting machines india Upper Punch Penetration like a possible feature
tablet press machine suppliers Variable speed pulley drive
tableting machines india

Technical Specification
Models S-12 S3-16 S3-20 S3-23
Tooling Special "D" "D" "B/D" Combined
No. of Stations 12 16 20 23
Max. Output (Tab/hr)* 15, 840 40, 320 50, 400 57, 960
Max. Pressure (Tons) 12 10 10 10
Max. Tablet Dia (mm) 40 25.4 25.4 16
Max. Depth of Fill (mm) 30 20 20 17.4
Electricals 3 HP, 3 Ø, A.C 2 HP, 3 Ø, A.C 2 HP, 3 Ø, A.C 2 HP, 3 Ø, A.C.

Basically, the maximum possible output is around 80 % of designed one.
The output relies upon following factors.
tablet press machine suppliers Ambient Conditions.
tableting machines india The chemical and physical properties of the material being compressed.
tablet press machine suppliers The tablet weight, shape, and thickness.

HIGH SPEED PRESS GMP MODEL
Characteristics and special features :
tableting machines india As per the cGMP guidelines
tablet press machine suppliers Auto Lubrication
tableting machines india Extremely low noise levels equal to 80 dB
tablet press machine suppliers Force Feeder Drive Starting from Bottom
tableting machines india Front Controls
tablet press machine suppliers Higher output equal to 253,800 tablets / hr
tableting machines india Hydraulic Power Pack
tablet press machine suppliers Main motor as well as Force Feeder motor determined through the ACVF
tableting machines india PLC system like a possible feature
tablet press machine suppliers Pre compression equal to 5 tons
tableting machines india SCADA System and computer interface like a possible feature
tablet press machine suppliers Safety Interlocking intended for the upper guards
tableting machines india Upper Punch Penetration
tablet press machine suppliers User-friendly operations
tableting machines india

Technical Specification Of Tableting Machine
Models SMB-30 SMB-37 SMBB-47
Tooling "D" "B" "BB"
No. of Stations 30 37 47
Ma. Output (Tab/hr) 162,000 199,800 253,800
Max. Pressure (Tons) 10 8 8
Pre-Compression (Tons) 5 5 5
Max. Tablet Dia (mm) 25.4 16 13
Max. Depth of fill (mm) 20 16 16
Main Motor 5 HP, 3 Ø, A.C 5 HP, 3 Ø, A.C 5 HP, 3 Ø, A.C
Total Power 7 HP, 3 Ø, A.C 7 HP, 3 Ø, A.C 7 HP, 3 Ø, A.C

Note:
tablet press machine suppliers The electric frequency and voltage may be given according to customer's requirements.
tableting machines india Right for the modifications in specs and design are kept without earlier notice.
tablet press machine suppliers Real output is generally 80% of the value.

Contact us for all your requirements of tableting machines India as we are the leading tablet press machine suppliers.
